Vehicles (APC)

Dragoon Light Forces Vehicle

LFV-2

LFV-2

LFV-1

LFV-1

The Dragoon Light Forces Vehicle is a variant of the basic Dragoon Armored security Vehicle (ASV), fitted with a one-man dual machine gun turret. The basic configuration provides seating for up to six occupants.

Stowage is provided for weapons, ammunition, field rations, personal gear and other mission related equipment.

Provision is made for the installation of most vehicular radio communications systems, including multi-station intercoms. At its gross vehicle weight rating (GVW) of 28,000 lbs., the Dragon is capable os highway speeds in excess of 70 miles per hour.

The exclusive Dragoon Power Pack system permits removal of the engine, transmission, cooling, hydraulic and electrical systems as an integral unit, providing maintenance personnel with ground access to all major systems. The extensive use of field-proven military and heavy duty commercial ground access to all major systems. The extensive use of field-proven military and heavy duty commercial components assures a ready supply of replacement parts. All Dragoon Armored Vehicle models are designed for functional simplicity and parts interchangeability. The Central Tire Inflation System (CTIS) automatically regulates the tire pressure at each wheel to adapt to most terrain conditions.

The dragoon may be equipped with a variety of other options and features to meet special requirements and user specifications.

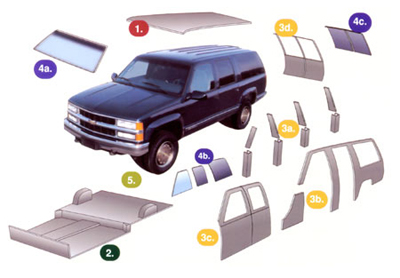

Armored Suburban Security Vehicle - C4 Protection Level

Ballistic Protection

  • Satisfies DIN Spec 52290 Level C4
  • Independently Tested By UDRI Laboratory
  • Multilayered Glass/ Polycarbonate transparencies
  • Optically distortion Free
  • Designed to Provide Maximum Security
  • Manufactured for Maximum Quality
Advanced Armor Protection
Advanced Armor Protection

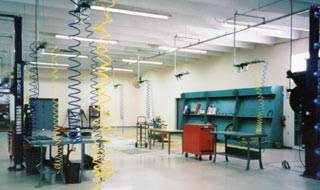

Added Value Though Engineering and Manufacturing

This level of security and safety is now available at an affordable price with improved protection, value, and quality. These improvements are made possible by employing CAD/CAM design systems and manufacturing processess that include robotic metal joining and welding of high hard armor plate.

Added Value Though Engineering and Manufacturing

ARMOR SPECIFICATION

  • DIN Specification 52290 Level C4
  • Transparent and Perimeter Armor
  • Multi-Hit Protection
  • Blast protection
  • Design eliminates Ballistic Gaps

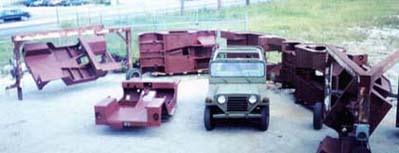

JEEPS - DEFEATED THREATS

Ballistic:

  • M80 Ball (7.62x51 NATO)
  • AK-47 (7.62x39)
  • 0.30 Cal/ 30-06
  • .44 Magnum
  • .357 Magnum
  • 9mm Full Metal Jacket
  • 9mm UZI

Blast:

  • 2x DM51 Grenades (std)
  • 2x M67 grenades (opt)
JEEPS - DEFEATED THREATS
